Double screw lifting baldes conical mixer for fertilizer ribbon mixer

Product Description

Double screw lifting baldes conical mixer for fertilizer ribbon mixer

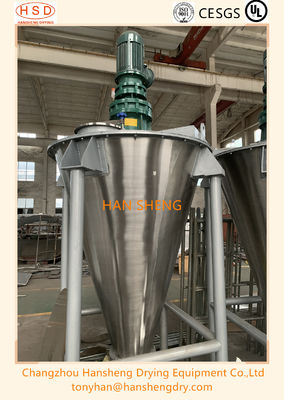

DSH-1000 VERTICAL CONICAL SCREW MIXER

Application

Double Auger Conical Mixer is worldwide acknowledged as the industrial standard conical shape mixer and it is used on a wide variety of applications in the industry such as pharmaceutical, food, battery materials, dyestuff & pigment, chemical industry, fertilizer, rare earth, titanium powder etc. It is widely used to mix powder-powder, power-liquid, especially for fine powder, fiber or chip-shaped materials.

Work Principle

This machine has two augers, a long one and a short one. Bases on the principle of rotation and revolution, it conveys the material along with the augers by means of rotation. At the same time, the material is upward and downward cycled by gyratory stirring along wall surface of cone, with the central revolution.

Features

1. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
2. Control system has more choices, such as push button , HMI+PLC and so on.
3. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on
4. Machine materials : AISISUS304 , AISISUS316L, and other material .
5. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.
6. For the cleaning, the machine can install the spray ball to auto cleaning, but client supply the CIP system.

Technical Parameters

Machine parts pictures

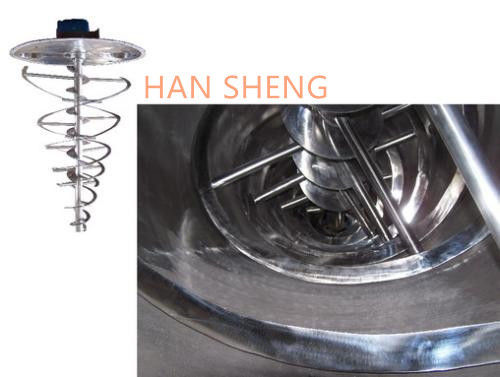

A,Agitating Parts

The agitating parts of this series mixer are relatively simple with helical blades out of a principal axis driving the material from up to down and outside spiral belt distributed by cone-shape, jointing closely with cylinder to lift the material from bottom to up.

B,Volume

Cone-shape spiral belt mixer offers the advantages of compact structure, low energy consumption, soft mix movement and few friction heat, usually used in the mix environment of low mix volume and high value added with small volume of device.

C,Cooling and heating

Cool or heat the materials through injecting the cold or hot medium into the jacket which is added to the outside of the mixer cylinder.Pump industrial water for cooling and steam or heat oil heated by electricity for heating.

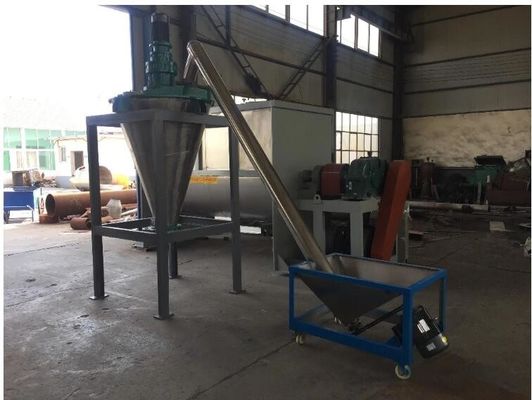

D,Feeding Mode

The cover of this mixer can be made as full open type in the small scale production place in order to feed material manually and clean the interior of device by users.

E,Discharging Mode

Due to the mixing feature, the cone-shape spiral belt mixer is suitable for mixing the liquid materials, usually applying to agitate the mixed dye and pesticide.Under this condition, it needs to change discharge valve into butterfly valve or ball valve.

Shipping and Delivery

Raw Material

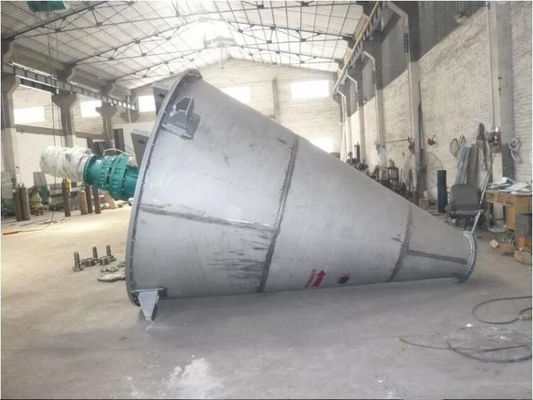

Machine quality inspection before leaving factory

Previous Exhibition

Service Flow

pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.

Why choose us

1.Specialized in designing, developing and manufacturing.

2.Above 130 National patents,national and provincial technology innovation awards

3.Provincial Pharma Equipment Engineering Technology Research Center

4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises

5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises

6.Modern production workshop and production line of high-end manufacturing equipment

7.Professional and efficient after-sales service management

8.Competitive price and prompt delivery

9.Meet ISO9001 and CE

10.OEM/ODM available

Company View

Company introduction: Changzhou Hansheng Drying Equipment Co., Ltd.
Changzhou Hansheng Drying Equipment Co.,Ltd has established in 2011 and it covers an area of 15000 square meters, possesses fixed asset of USD 5 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.

FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.

2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.

3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.

4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
