Hot Air Circulation Stainless Steel Pharmaceutical Dryer
Product Details:
| Place of Origin: | China Origin |
| Brand Name: | HSD |
| Certification: | CE/SGS/UL/ISO |
| Model Number: | GR-14 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 5000-20000 |
| Packaging Details: | Standard exported wooden case for long and sea shipping |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 pieces per year |
|
Detail Information |
|||
| Material: | SS304, SS316L | Safety: | GMP And Reliable Safety Device |
|---|---|---|---|
| Polish: | Ra0.8 And Ra1.6, No Dead Corner | Cleaning: | Easy For Cleaning |
| Handle: | Easy For Workers To Handle | ||
| High Light: | Hot Air Circulation Pharmaceutical Dryer,Stainless Steel Pharmaceutical Dryer |
||
Product Description
Hot Air Circulation Stainless Steel Pharmaceutical Dryer
Stainless Steel GMP FDA Full Filtration Pharmaceutical Drying Hot Air Circulation Tray Oven
GR-14 HOT AIR CIRCULATION TRAY OVEN
Application
Heat air cycle baker can be used as drier of medicine, chemistry, food, agricultural and sideline products, sea food, light and heavy industries, such ad raw material medicine, Chinese herb, Chinese herb pill, extractum, powder, electuary. packing bottle, dye, paint, dehydration vegetable, fruit and nut, banger, plastic epoxy and components, bake paint etc.
Work Principle
Nearly all hot air cycle within baker, high heating efficiency, energy saving.
Utilizing forced heat air cycle within baker, without air separating plate, material can be dried uniformly. vapor, heat water, powder, FRI all can be used as heating resources.
Low noise, steady operation; temperature auto adjustment; easy access to temperature control, repair and maintenance.
Various application; all kinds of materials drying; one of most common drying equipment.
Features
Heating source: Vapor, Heat conductive oil, hot water, electric heating pipe, FRI etc.
Operation temperature: Vapor heating ambient temperature ~140℃, Max 150 ℃.
Electric, FRI, ambient temperature~350 ℃.
Auto-control system and computer control system as option.
Common vapor pressure 0.2~0.8MPa.
Electro-heating (type 1)15kw.
Special requirements should be indicated while ordering.
No standard baker can be produced based on process parameter.
Operation ambient temperature exceed 140 ℃ or less than 60 ℃ should be marked out while ordering.
Bake vehicle and tray's dimension are standard, changeable.
Bake tray dimension:460×640×45mm
Technical Parameters
| el | Evaporation eara(sqm) |
Volume (mcbm) |
Drying capacity (kg/batch) | Steam consumption (kg/h) |
Heating powder (kw) |
Fan volume (cbm) |
Fan Power (kw) | Dimension (mm) |
Weight kg) |
| CT-C-0 | 7.1 | 1.3 | 60 | 10 | 9 | 3450 | 0.45 | 1380*1200*2000 | 820 |
| CT-C-1 | 14.1 | 2.6 | 120 | 18 | 15 | 3450 | 0.45 | 2260*1200*2000 | 1580 |
| CT-C-2 | 28.3 | 4.9 | 240 | 36 | 30 | 6900 | 0.45*2 | 2260*2200*2000 | 1800 |
| CT-C-2A | 28.3 | 4.9 | 240 | 36 | 30 | 6900 | 0.45*2 | 4280*1200*2270 | 1880 |
| CT-C-3 | 42.4 | 7.4 | 360 | 60 | 45 | 10350 | 0.45*3 | 2260*3200*2000 | 2100 |
| CT-C-3A | 42.4 | 7.4 | 360 | 60 | 45 | 10350 | 0.45*3 | 3240*2200*2000 | 2210 |
| CT-C-4 | 56.5 | 10.3 | 480 | 80 | 60 | 13800 | 0.45*4 | 4280*2200*2270 | 2800 |
| CT-1 | 14.1 | 2.6 | 120 | 20 | 15 | 3450 | 1.1 | 2480*1200*2375 | 1220 |
| CT-2 | 28.3 | 4.9 | 240 | 40 | 30 | 5230 | 1.5 | 2480*2200*2438 | 1530 |
| CT-3 | 42.4 | 7.4 | 360 | 60 | 45 | 9800 | 2.2 | 3430*2200*2620 | 2110 |
| CT-4 | 56.5 | 10.3 | 480 | 80 | 60 | 11800 | 3 | 4460*2200*2620 | 2300 |

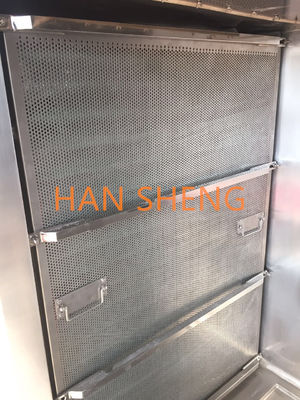

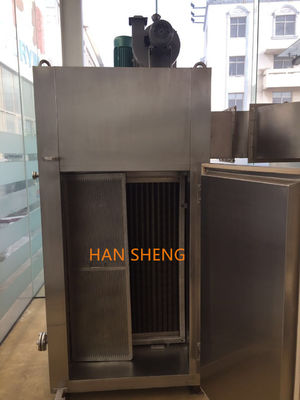

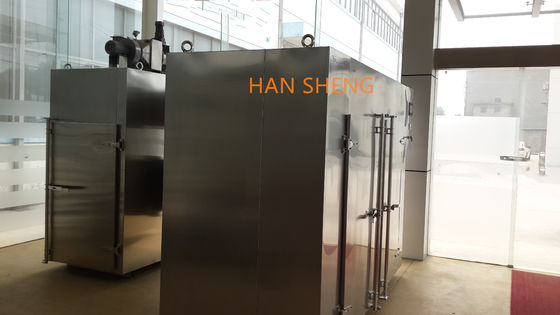

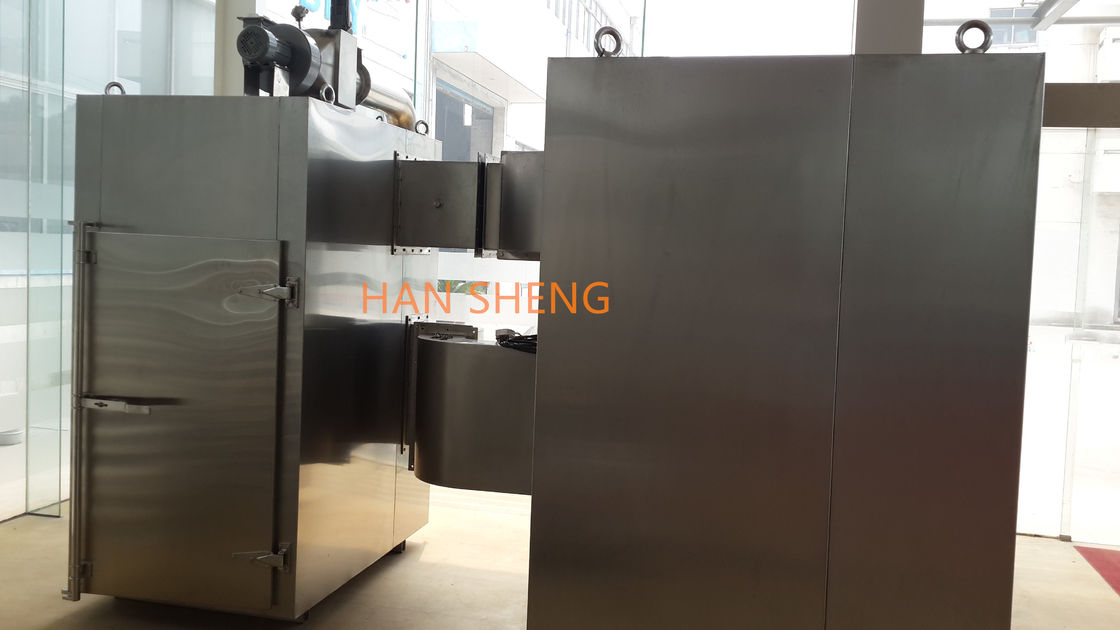

Machine parts pictures
Shipping and Delivery
Raw Material
Machine quality inspection before leaving factory
Previous Exhibition
Service Flow
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
Why choose us
1.Specialized in designing, developing and manufacturing.
2.Above 130 National patents,national and provincial technology innovation awards
3.Provincial Pharma Equipment Engineering Technology Research Center
4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises
5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises
6.Modern production workshop and production line of high-end manufacturing equipment
7.Professional and efficient after-sales service management
8.Competitive price and prompt delivery
9.Meet ISO9001 and CE
10.OEM/ODM available
Company View
Company introduction: Changzhou Hansheng Drying Equipment Co., Ltd.
Changzhou Hansheng Drying Equipment Co.,Ltd has established in 2011 and it covers an area of 15000 square meters, possesses fixed asset of USD 5 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
Trade Distribution:
Certificate Display:
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
