HSD Vertical Wet Type 500L Pesticide Mixer Machine
Product Details:
| Place of Origin: | China Origin |
| Brand Name: | HSD |
| Certification: | CE/SGS/UL/ISO |
| Model Number: | LCH-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 8000-20000 pieces |
| Packaging Details: | Standard exported wooden case for long and sea shipping |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 pieces per year |
|
Detail Information |
|||
| Material: | SS304, SS316L | Safety: | GMP, Reliable Safety Device |
|---|---|---|---|
| Polish: | No Dead Corner | Cleaning: | Easy For Cleaning |
| Handle: | Easy For Workers To Handle | ||
| High Light: | 500L Pesticide Mixer Machine,HSD Pesticide Mixer Machine,500L Pesticide mixing machine |
||
Product Description

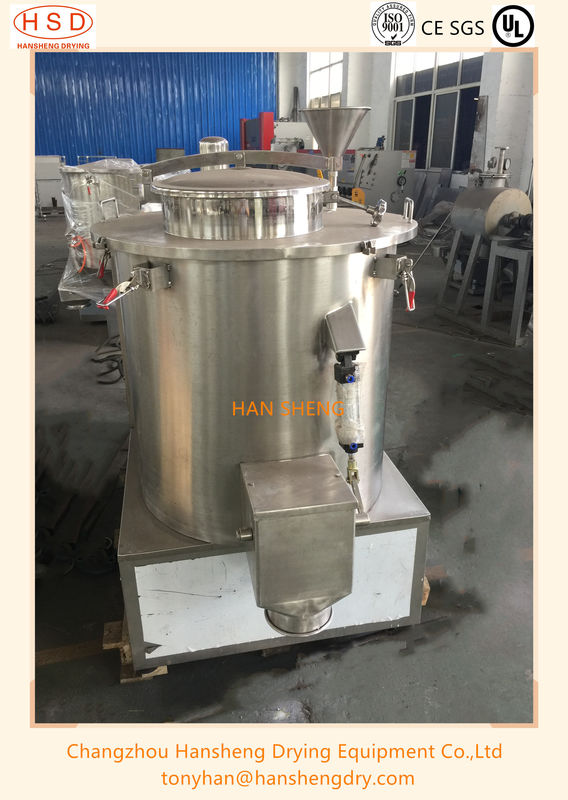

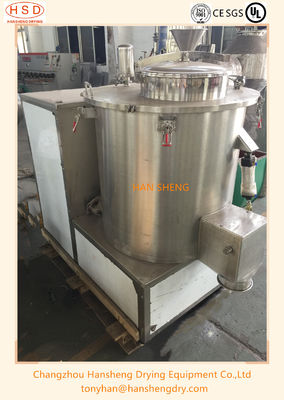

HSD Vertical Wet Type 500L Pesticide Mixer Machine
WDG pesticide veterinary drug food additive vertical paste pharmaceutical chemical stainless steel wet material mixer
LCH-500 HIGH SPEED MIXER
Application
1. LCH type vertical high speed blender for mixing powder with small moisture to desigh. It is a new type high-efficiency, regular and no dead angle machine.
2. The contact parts material are all stainless steel. The stirring shaft with sealing device to avoid material swap and guarantee bearing and driving medium life.
Work Principle
A big mixing oar blade on the bottom of the barrel,which make the material turn down in the middle and up round the edge.To make the whole material mixing thoroughly.What's more,a small cutter on the side to cut the big or block material to ensure the mixing efficiency.
Features
1. Use install the bottom's vertical high speed paddle formative centrifugal force impact material, let it outside upward roll and inside downward sunk like volution. Let the material inside, outside, up and down mixing and compound full.
2. Use install the parietal's high speed crushed paddle to smarsh roll material of outside, at the sametime it has disturbed function, increase material relative motion, enhance mixing result.
3. Due to two paddle's combined action, it is compound full and uniform at short time. It's efficiency is higher and other mixers are difficult to compare.
4. There are no dead angle of mix bin. It is emptying quickly and cleaning easily.
5. All contact parts of this machine are all stainless steel. When mixing the raw material will not volatilizer, go bad and run off phenomemon. It is ensure craft matching demands.
6. The machine are suitable for different proportional dry or wet raw materials to mix. It is specially for chicken extract, medicine granule and drink powder to compound.
Technical Parameters
Machine parts pictures
Honors and Patents
Shipping and Delivery
Raw Material
Machine quality inspection before leaving factory
Previous Exhibition
Service Flow
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
Why choose us
1.Specialized in designing, developing and manufacturing.
2.Above 130 National patents,national and provincial technology innovation awards
3.Provincial Pharma Equipment Engineering Technology Research Center
4.National High-Tech,National Pharma Equipment Industry Association,Provincial new special expertise Enterprises
5.Manufacture the solid preparation production line equipment for above 500 domestic and oversea enterprises
6.Modern production workshop and production line of high-end manufacturing equipment
7.Professional and efficient after-sales service management
8.Competitive price and prompt delivery
9.Meet ISO9001 and CE
10.OEM/ODM available
Company View
Company introduction: Changzhou Hansheng Drying Equipment Co., Ltd.
Changzhou Hansheng Drying Equipment Co.,Ltd has established in 2011 and it covers an area of 15000 square meters, possesses fixed asset of USD 5 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
