KJG-5 OAR DRYER
Application
Blade dryer has been successfully used in food, chemical, petrochemical, dye, industrial sludge and other fields. Equipment heat, cooling, mixing features make it to complete the following unit operations: calcination (low temperature), cooling, drying (solvent recovery), heating (melting), response and sterilization. Mixing blades at the same time the heat transfer surface, the effective volume per unit area of heat transfer increases, reducing the processing time. Heat transfer surfaces in wedge-shaped blades with self-cleaning function. Compression - Expansion mixing features make the material mixed uniformly. Material along the axis into a "plug flow" movement, in the axial zone, the material temperature, humidity, mixing a very small degree of gradient.
1. Conducting oil to do with the heat medium, blade dryer to complete the work of low-temperature calcination. Such as: calcium sulfate dihydrate (Ca2SO4 · 2H2O) calcined into calcium sulfate hemihydrate (Ca2SO4 · 1/2H2O). Sodium bicarbonate (NaHCO3) into calcined soda (Na2CO3) and so on.
2. Pass into the cooling medium, such as water, salt, etc. can be used to cool the cooling. Such as: use of soda ash industry in blade-type cooler base machine to replace the old air-cooled cooler base machine, saving energy and exhaust gas processing equipment, lower operating costs, but also for titanium, nickel alloy powder and all kinds of powder granular materials cooling. On a single machine where the material can be cooled from 1000 °C to less than 40 °C.
3.Dry, the main function of equipment, do not use hot air to solvent recovery, energy consumption, environmental control is easy to deal with the ideal state. On the need to recover solvents, heat-sensitive materials, particularly flammable adapt easily oxidized. Has been widely used in fine chemical, petrochemical, dye industry.
4. Axial range, temperature, humidity, mixing degree of uniformity, so equipment can be used to heating or melting, or some solid material response. In the compound and modified starch industries have been successfully used. Blade dryer can be used to carry out sterilization of food and flour. Unit within the effective volume of a large heating area, will soon be material heated to sterilization temperature, to avoid prolonged heating change the quality of materials.
Work Principle
KJG series Paddle Dryer / Processor are highly efficient, mechanically agitated, indirect heat transfer devices that add or remove heat from a process mass. They are used for drying, heating, cooling, pasteurization, crystallizing, and reacting of pastes, cakes, powders, and granules.
Dual counter-rotating shafts with unique intermeshing discs produce intimate mixing and optimize heat transfer. The use of hollow discs and drying chamber heating jacket for heat transfer results in a compact machine. The heat transfer medium: steam, hot water or hot oil is isolated from the process mass. The KJG series Paddle Dryer provides a reliable and efficient method for drying slurry, filter cakes and centrifuge concentrates.
The exhaust gases can be treated by cyclone, condenser and scrubber to considerably reduce air contamination. For those wet materials of heat sensitive, easy oxidized, containing organic solvents which need to be recovered, vacuum design is available.
Features
1. Blade dryer energy consumption is low: as indirect heating, the air does not carry away a lot of heat insulation of dryer wall has, on the slurry material, evaporation of 1kg of water vapor only 1.22kg.
2. Blade dryer system costs low: within the effective volume of units have a large heat transfer surface, the reduced processing time, equipment size becomes smaller. Would greatly reduce the building area and building space.
3. Dealing with a wide range of materials: using a different hot medium, able to deal with heat-sensitive materials can be heat-treated materials handling. Commonly used media are: water, steam, oil, hot water, cooling water. Continuous operation can also be intermittent operation can be applied in many fields.
4. Environmental pollution: do not carry air, dust entrainment few materials. Solvent evaporation material is very small, easy to handle. To have contaminated materials or be recycled solvent conditions, can be used closed circuit.
5. Low operating cost: the equipment normal operation, only 1 hour / Heaven. Low speed and reasonable structure. Wear a small, very low maintenance costs.
Technical Parameters
| Spec |
KJG3 |
KJG 9 |
KJG13 |
KJG18 |
KJG 29 |
KJG 41 |
KJG 52 |
KJG 68 |
KJG 81 |
KJG 95 |
KJG 110 |
| Heat transferring area m2 |
3 |
9 |
13 |
18 |
29 |
41 |
52 |
68 |
81 |
95 |
110 |
| Effective volume m3 |
0.06 |
0.32 |
0.59 |
1.09 |
1.85 |
2.8 |
3.96 |
5.21 |
6.43 |
8.07 |
9.46 |
| Range of rotating speed r.m.p |
15-30 |
10-25 |
10-25 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
5-15 |
5-15 |
5-10 |
| Power kw |
2.2 |
4 |
5.5 |
7.5 |
11 |
15 |
30 |
45 |
55 |
75 |
95 |
| Width of vessel mm |
306 |
584 |
762 |
940 |
1118 |
1296 |
1474 |
1652 |
1828 |
2032 |
2210 |
| Total width mm |
736 |
841 |
1066 |
1320 |
1474 |
1676 |
1854 |
2134 |
1186 |
2438 |
2668 |
| Length of vessel mm |
1956 |
2820 |
3048 |
3328 |
4114 |
4724 |
5258 |
5842 |
6020 |
6124 |
6122 |
| Total length mm |
2972 |
4876 |
5486 |
5918 |
6808 |
7570 |
8306 |
9296 |
9678 |
9704 |
9880 |
| Distance of material inlet & outlet mm |
1752 |
2540 |
2768 |
3048 |
3810 |
4420 |
4954 |
5384 |
5562 |
5664 |
5664 |
| Height of center mm |
380 |
380 |
534 |
610 |
762 |
915 |
1066 |
1220 |
1220 |
1220 |
1220 |
| Total height mm |
762 |
838 |
1092 |
1270 |
1524 |
1778 |
2032 |
2362 |
2464 |
2566 |
2668 |
| Steam inlet “N” (inch) |
3/4 |
3/4 |
1 |
1 |
1 |
1 |
11/2 |
11/2 |
11/2 |
11/2 |
2 |
| Water outlet "o" (inch) |
3/4 |
3/4 |
1 |
1 |
1 |
1 |
11/2 |
11/2 |
11/2 |
11/2 |
2 |

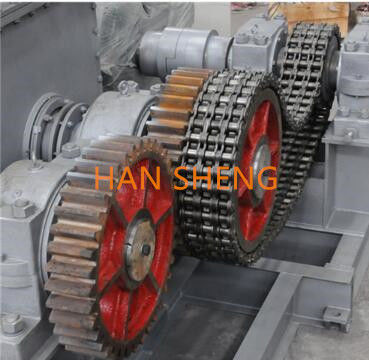

Machine parts pictures
Tubular heating jacket
1) Heating jacket working pressure can each 0.9 Mpa
3) Tubular heating jacket can insure very uniform heating
4) 80mm mineral insulation to considerably prevent hot loss

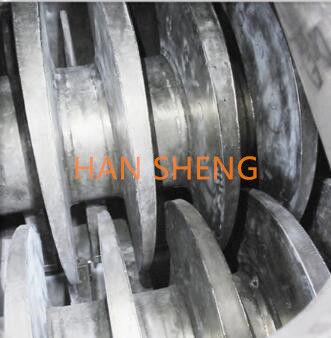

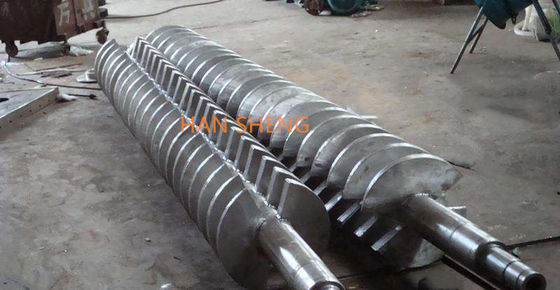

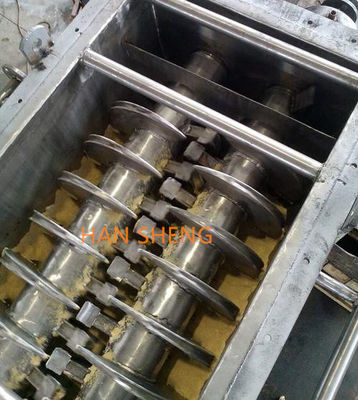

Hollow disc
1) Considerably increase heating surface
2) Much less welding area than other types of paddles
3) Self-cleaning disc surface can considerably enhance heat transfer

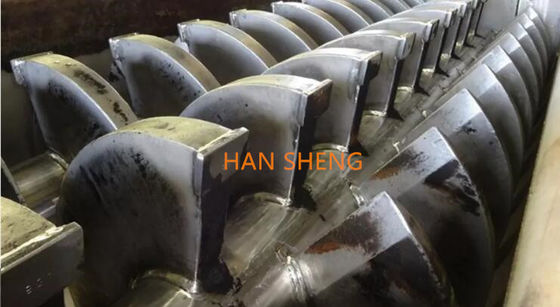

4) Small paddles welded on discs with different angle can perfectly mix and move wet materials

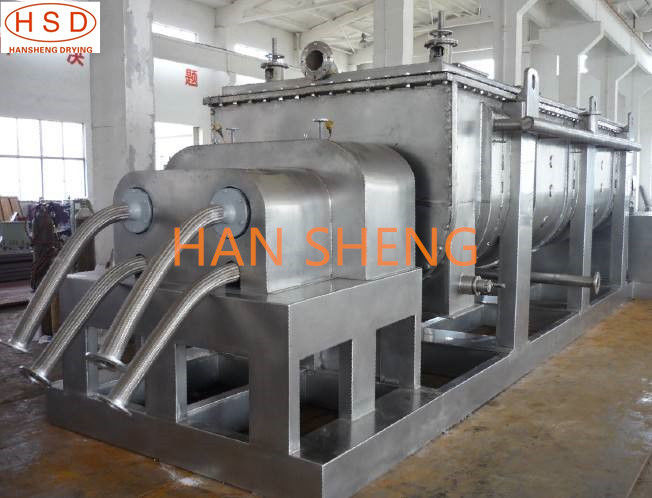

Integral beating seat and cooling jacket
1) Bearing seat is mounted on end plate as an integral part of drying chamber. This design can ensure the concentricity of shaft.
2) Water cooling jacket is equipped to increase the life-span of bearing.
3) One-pass rotary joint can insuare each hollow disc is full of oil heating medium
Exhaust gas treatment system
The combination of cyclone, tubular condenser and two stage scrubber can reach very high emission standard
