WLDH Horizontal Powder Ribbon Mixer
Product Details:
| Place of Origin: | China Origin |
| Brand Name: | HSD |
| Certification: | CE/SGS/UL/ISO |
| Model Number: | WLDH-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 20000-40000 pieces |
| Packaging Details: | Standard Exported wooden case for long and safe sea shippig |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 pieces per year |
|
Detail Information |
|||
| Material: | SS304 | Safety: | Reliable Safety Device |
|---|---|---|---|
| Polish: | No Dead Corner | Cleaning: | Easy For Cleaning |
| Handle: | Easy For Workers To Handle | ||
Product Description
WLDH Horizontal Powder Ribbon Mixer
WLDH-1000 HORIZONTAL RIBBON MIXER
Application
Horizontal paddles are made of added-thickness stainless steel, the distances to barrel wall are precisely calculated reason-able to make fast & homogenous mixing. All these models are equipped with speed reducer motors which feature with low noisy and durable service life. Barrel can be inclined to 100° for easy unloading.
Work Principle

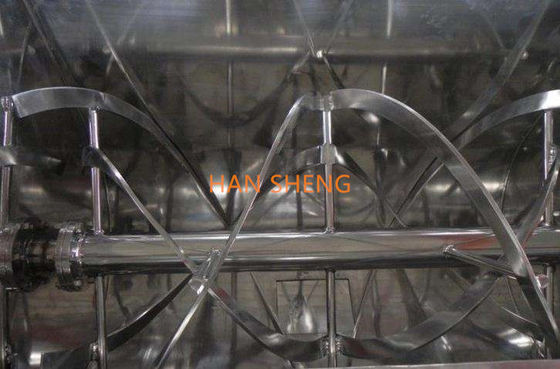

The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention
The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
Features
1. Suitable for all kinds of plastic raw materials and color powder or granules.
2. Fully stainless steel contacting parts, rust free, easy to clean and ensure the material not to be polluted
3. Installed with power control device to ensure safety and automatic stop device that can be set to 0~30mins automatically stop.
Technical Parameters
| specification | LDH-0.3 | LDH-0.5 | LDH-1 | LDH-2 | LDH-3 | LDH-4 | LDH-5 | LDH-6 | LDH-8 | LDH-10 | LDH-15 | LDH-20 | LDH-30 | |
| wrking capacity(m³) | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 | 9 | 12 | 18 | |
| working capacity(kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3000 | 3600 | 4800 | 6000 | 9000 | 12000 | 15000 | |
| speed (r/min) | 62 | 62 | 49 | 33 | 33 | 27 | 27 | 27 | 22 | 14 | 14 | 14 | 12 | |
| power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | |
| weight | 600 | 900 | 1200 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 | 6000 | 7500 | 10500 | 13000 | |
| Length | 2280 | 2670 | 3140 | 3860 | 4460 | 4950 | 5280 | 5530 | 5100 | 5610 | 5820 | 6300 | 7000 | |
| width | 680 | 780 | 980 | 1200 | 1300 | 1400 | 1550 | 1560 | 1720 | 1750 | 2000 | 2350 | 2600 | |
| Height | 880 | 1240 | 1400 | 1650 | 1700 | 2000 | 2100 | 2200 | 2500 | 2650 | 2900 | 3160 | 3350 |

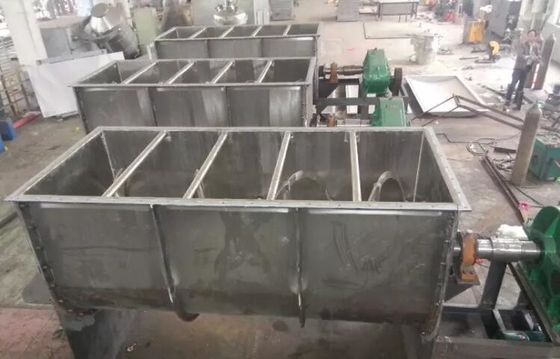

Machine parts pictures
Shipping and Delivery
Raw Material
Machine quality inspection before leaving factory
Previous Exhibition
Service Flow
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
