Touch Screen Herbal Extract Powder LPG-10 Spray Drying Machine
Product Details:
| Place of Origin: | China Origin |
| Brand Name: | HSD |
| Certification: | CE/SGS/UL/ISO |
| Model Number: | LPG-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 10000-100000 |
| Packaging Details: | Standard exported wooden case for long and safe sea shipping |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 PIECES PER YEAR |
|
Detail Information |
|||
| Material: | SS304 And SS316L | Safety: | GMP And Reliable Safety Device |
|---|---|---|---|
| Polish: | Great Mirror Polishing And No Dead Corner | Control: | Smart Control And Big Touch Screen |
| Handle: | Easy For Workers To Handle And Operate | Cleaning: | Easy For Cleaning And CIP |
| High Light: | 10kg/h Spray Drying Machine,LPG-10 Spray Drying Machine,GMP Herbal Extract Powder Spray Dryer |
||
Product Description
Touch Screen Herbal Extract Powder LPG-10 Spray Drying Machine
Herbal Plants Spice Extracts Powder stainless steel High Speed Atomizer Spray Dryer Drying Machine From China Supplier
Application
The spray drying is the technology widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing the powder, particle or block solid products from the materials, such as: solution, emulsion, soliquoid and pumpable paste states. For this reason, when the particle size and distribution of the final products, their residual water contents, the stacking density and the particle shape must meet the precision standard, the spray drying is one of the most desired technologies.
Work Principle
Spiral-shaped hot air evenly into the drying chamber. By passing through the high-speed centrifugal spray at the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through the very short time of contacting the heat air,the materials can be dried into the finished products. The finished products will separator. The waste gas will be discharged from blower.
Features
At a high speed of drying, after the spraying of the liquid material , the surface area of the material will be increased greatly. In the hot-air flow, 95%-98%of water can be evaporated at a moment. The time of completing the drying needs only several seconds. Products with good uniformity, mobility and solubility, high purity, good quality. The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40-60%(for special materials, The contents may reach 90%).can be dried into the powder or particle products once a time. After the drying, there is no need for smashing and sorting, so as to reduce the operation procedures in the production and to enhance the product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
Technical Parameters
| type | LPG | |||||||
| 5 | 25 | 50 | 100 | 150 | 200-3000 | |||
| Inlet temperature | ≤ 350°C | |||||||
| Outlet temperature | 80-90°C | |||||||
| evaporate capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-3000 | ||
| driving type | compressed air drive | mechanical drive | ||||||
| Rotate speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | ||
| diameter of atomizer tray (mm) | 50 | 120 | 120 | 120 | 150 | 180-340 | ||
| heating source | electricity | electricity | electricity +steam+fuel oil+coal gas | electricity +steam | electricity +steam+fuel oil+coal gas | To be solved by users | ||
| Electric-heating power (kw) | 9 | 45 | 60 | 81 | 99 | |||
| Dried powder recovery rate (%) | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ||
| Installation size | A(mm) | 1000 | 1290 | 1730 | 2500 | 2800 | according to practical needs | |
| B(mm) | 2100 | 3410 | 4245 | 5300 | 6000 | |||
| C(mm) | 2300 | 4260 | 4645 | 6000 | 6700 | |||
| φ D(mm) | 1060 | 1800 | 2133 | 2560 | 2860 | |||
| E1(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
| E2(mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
| F(mm) | 750 | 1000 | 1250 | 1750 | 1970 | |||
| G(mm) | 530 | 1700 | 1750 | 1930 | 2080 | |||
| H(mm) | 530 | 1300 | 1800 | 2600 | 3050 | |||
| I(mm) | 530 | 1550 | 1600 | 1780 | 1960 | |||

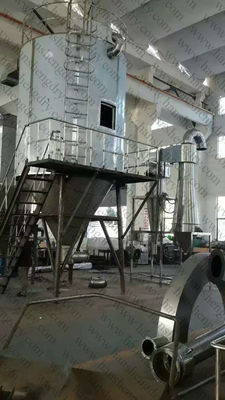

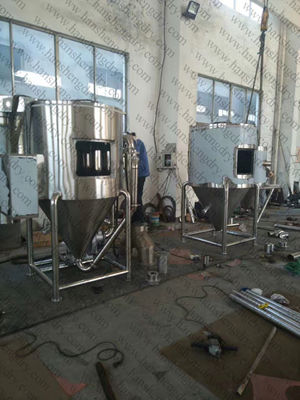

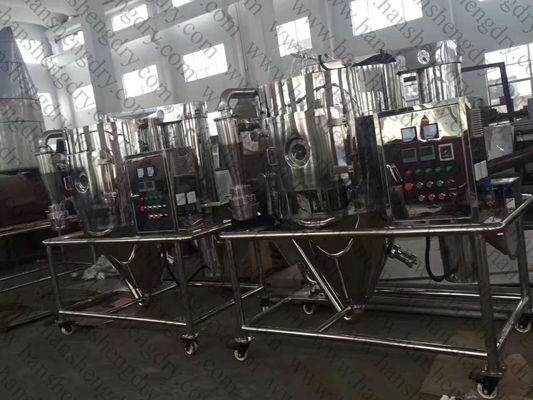

Machine parts pictures
Service Flow
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
Company View
Company introduction: Changzhou Hansheng Drying Equipment Co., Ltd.
Changzhou Hansheng Drying Equipment Co.,Ltd has established in 2011 and it covers an area of 15000 square meters, possesses fixed asset of USD 5 million. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
